Pull requests / #712

#712 Fix Windows AMD telemetry and add optional Arabic UI

closed · @almshary · 0 comments · View on GitHub

Server & APIAMD / HIPModels & quantsDocumentationWindowsLinux

Description

Windows AMD users currently see blank GPU load, VRAM, temperature, power and PCIe cards because the AMD telemetry reader only supports Linux sysfs. This change adds a read-only ADL reader for Windows and an optional Arabic interface while keeping English as the default.

- Read GPU utilization, WDDM dedicated VRAM usage, edge temperature, board power (ASIC power fallback), and PCIe generation/width from the AMD driver. Match HIP device indices to ADL adapters by PCI address and release ADL contexts after one-off memory queries. Unsupported sensors remain absent; PCIe throughput is not available through this reader.
- Add English/Arabic selectors to the main app and API Monitor, browser-local persistence, translated labels and status messages, and RTL layout. Messages follow their own text direction; code and API addresses remain LTR. Switching language preserves drafts, sampling values and active requests, without changing API protocol values or model prompts.
- Add ADL regression tests, a Playwright interface test, and documentation.

Validation:
- 18 tests passed: `python -m unittest serve.test_amd_windows serve.test_server.AmdTelemetry serve.test_monitor -q`.
- JavaScript syntax checks passed for `app.js`, `monitor.js`, and `i18n.js`.
- Playwright checks passed for English defaults, Arabic/RTL, persistence, language switching during an active request, unchanged request content and API values, code direction, API Monitor, mobile layout, and unavailable browser storage.
- Verified live ADL readings and the `/metrics` payload on Windows with an AMD Radeon RX 9070 XT; visually checked the Arabic dashboard at desktop and mobile widths.

### Arabic web interface

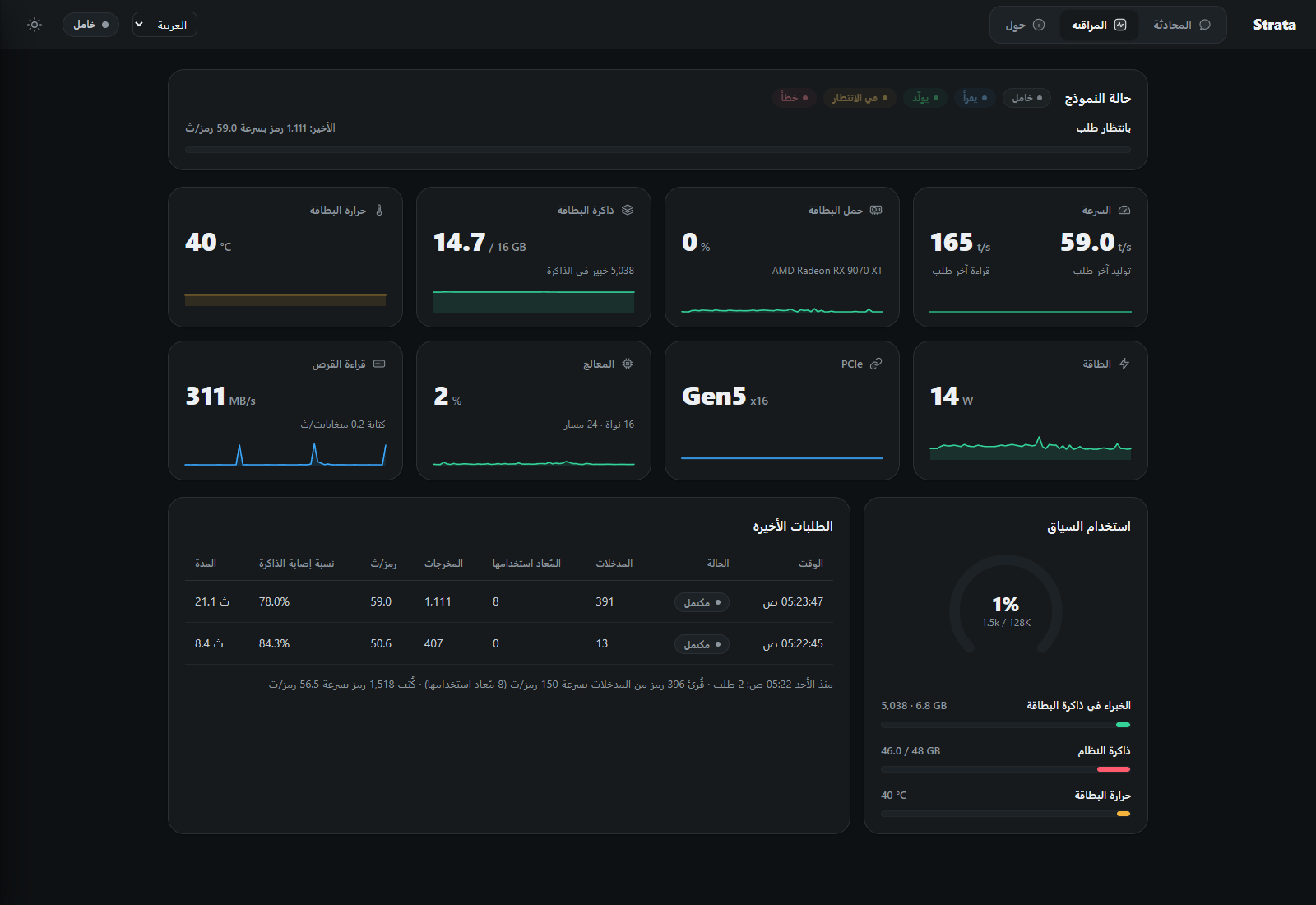

Screenshot from the running Windows server with Arabic selected, showing the RTL layout and live RX 9070 XT telemetry.

![Arabic Strata web monitor with RTL layout and live AMD GPU readings](https://raw.githubusercontent.com/almshary/Strata/ea5aa500d81f59fc1056d685a23a8e48d6e4a34d/docs/media/arabic-monitor.png)
